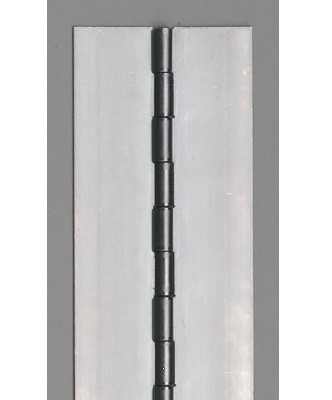

1000 Series Hinge

Please note: For our 1000 Series Hinges; brite-annealed (BA), brass pre-plate (BP) and nickel pre-plate (NP) hinges are standard with holes, punched and countersunk, on 2" centers.



Download a Generic 2D Drawing of this Series in PDF

  in mm
Thickness .040in 1.02mm
Pin Diameter .091in 2.31mm
Knuckle Length 1/2in 12.70mm
US$10.09
  • 17 - US$0.26 per EA
  • 42 - US$0.26 per EA
  • 83 - US$7.56 per EA
  • 167 - US$7.56 per EA
  • 417 - US$7.56 per EA
  • 833 - US$7.56 per EA
  • 42 - US$7.56 per EA
